A320 Cockpit Dimension Photos

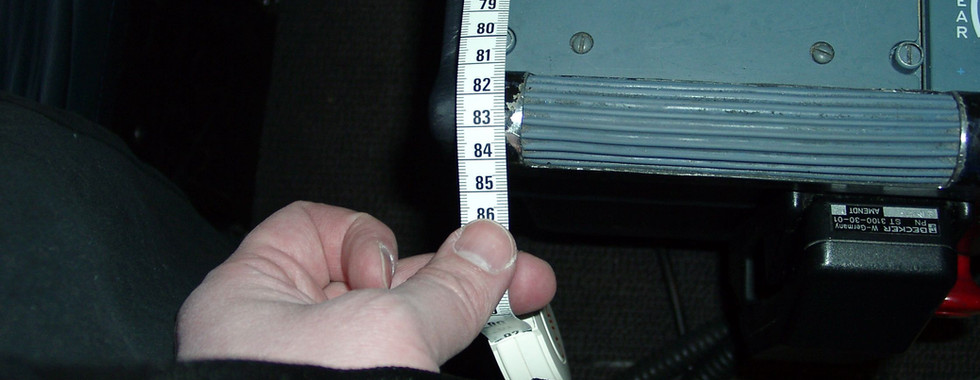

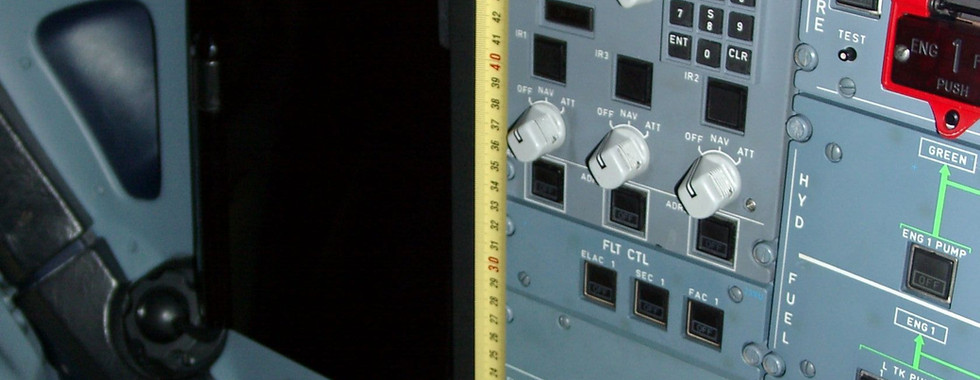

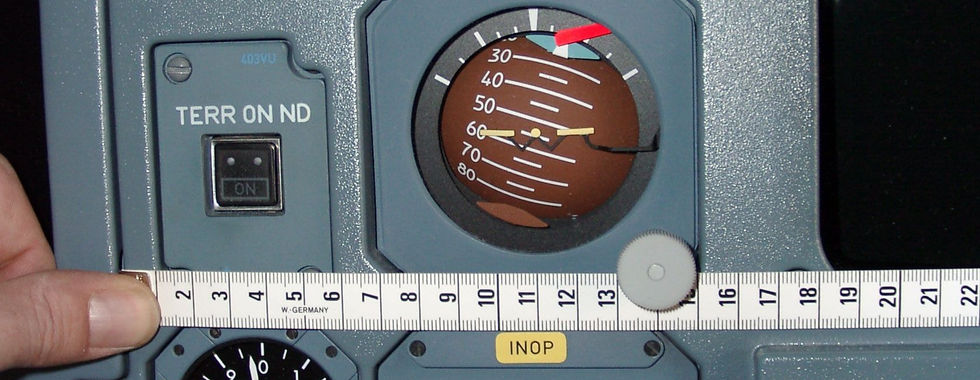

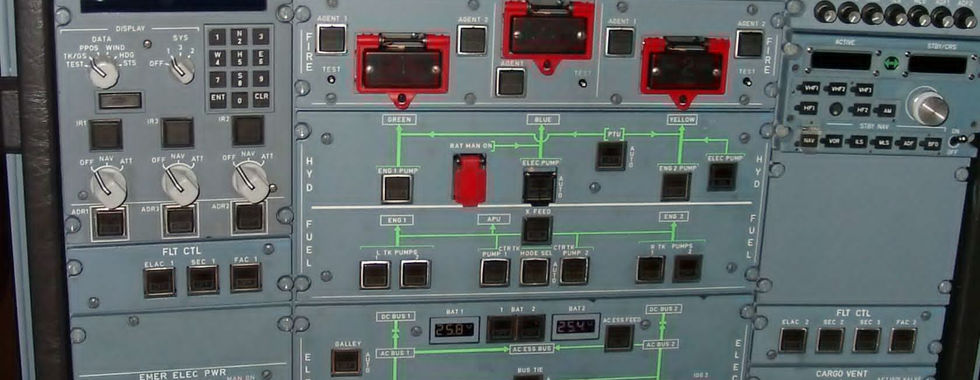

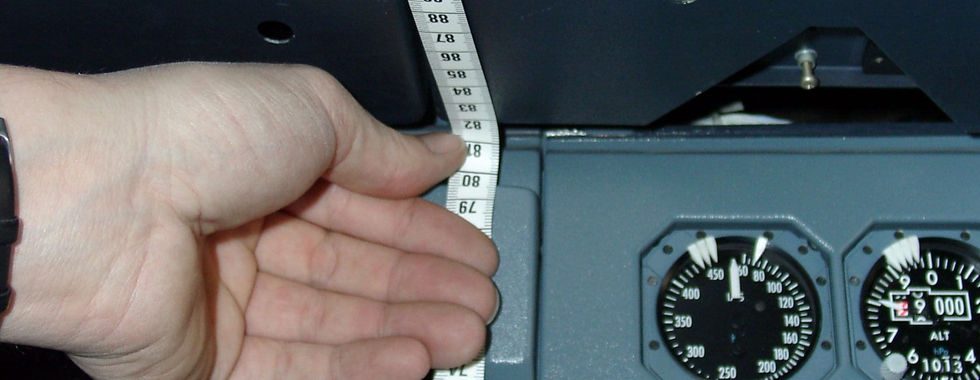

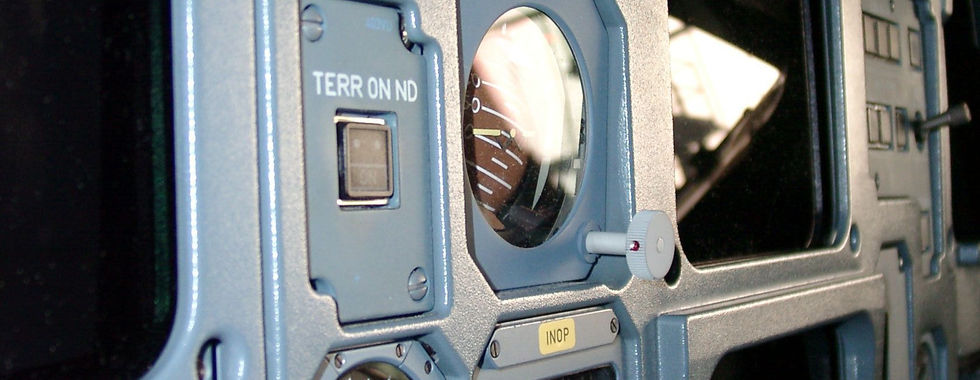

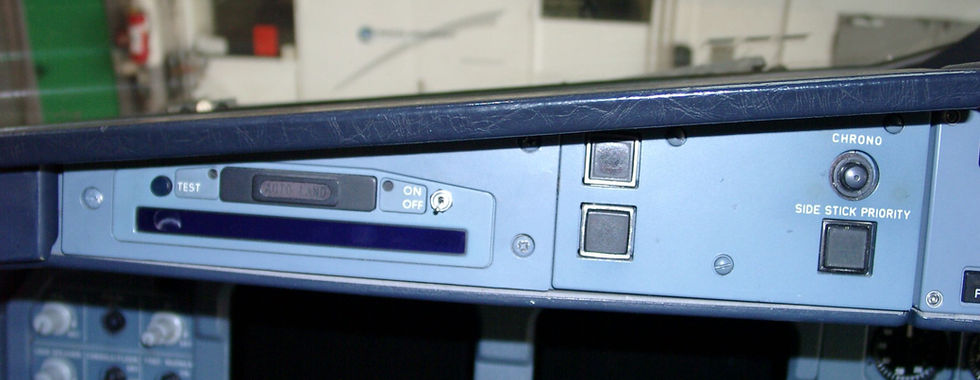

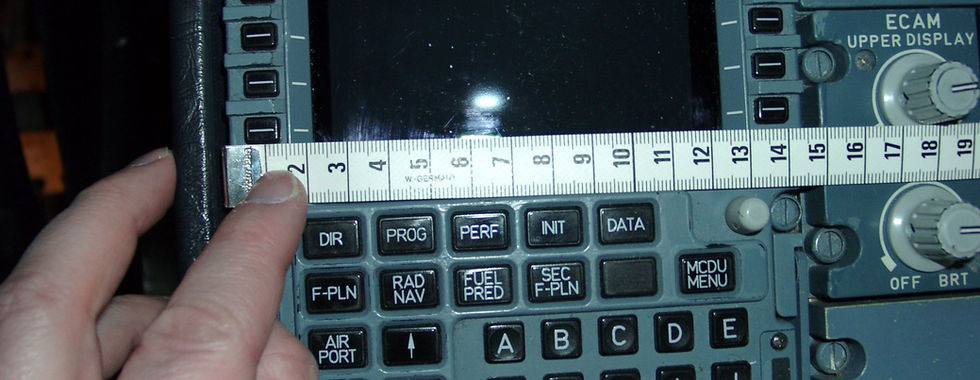

A true valuable set of photos from the past which guided me through my Airbus A320 homecockpit design. I respect the guy who took these photos and also the captain who allowed this idea (nowadays it is not possible to go near the cockpit door without being bashed by the cabin crew) I believe these photos are back from year 2004 or so. Almost all of the necessary dimensions are there and visible, with some knowledge of CAD it was enough for me to construct my cabin (links available on my web site)
